Reperix is a high performance and world’s smallest GPS rocket tracker.
This ultra compact module embeds a high performance GPS receiver for high accuracy 3D positionning, and long range radio downlink. Linked with a ground station and mobile app, Reperix is the ultimate tool for knowing where your rocket is at all times and never losing it again.
![](https://silicdyne.net/wp-content/uploads/2024/08/P1010027-scaled.jpg)
This tracker is sold as a bundle, along with its radio ground station.
Main Capabilities
Trajectory recorder
Recovery tracker
Long-range telemeter
![](https://silicdyne.net/wp-content/uploads/2024/08/P1010021-scaled.jpg)

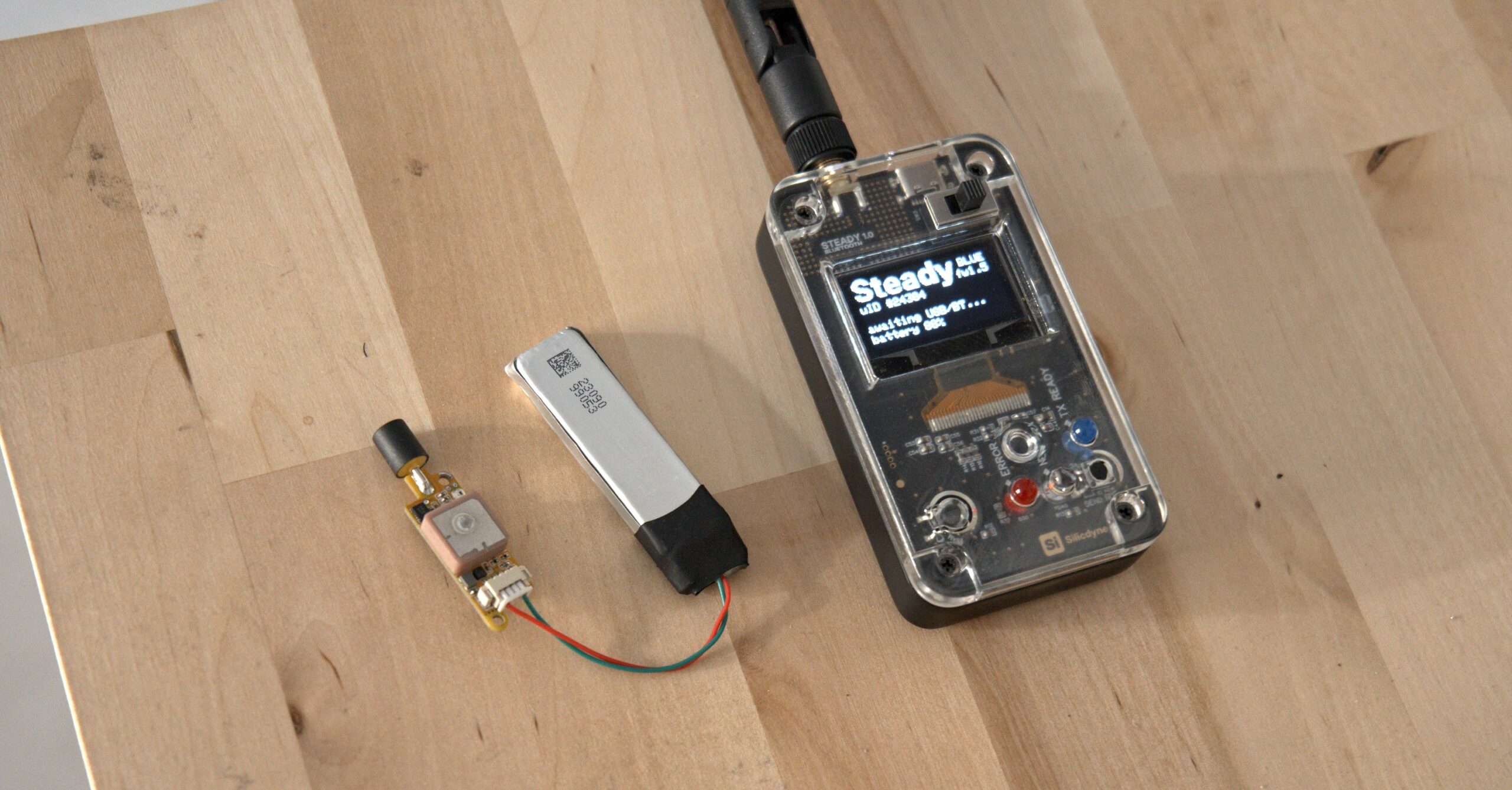

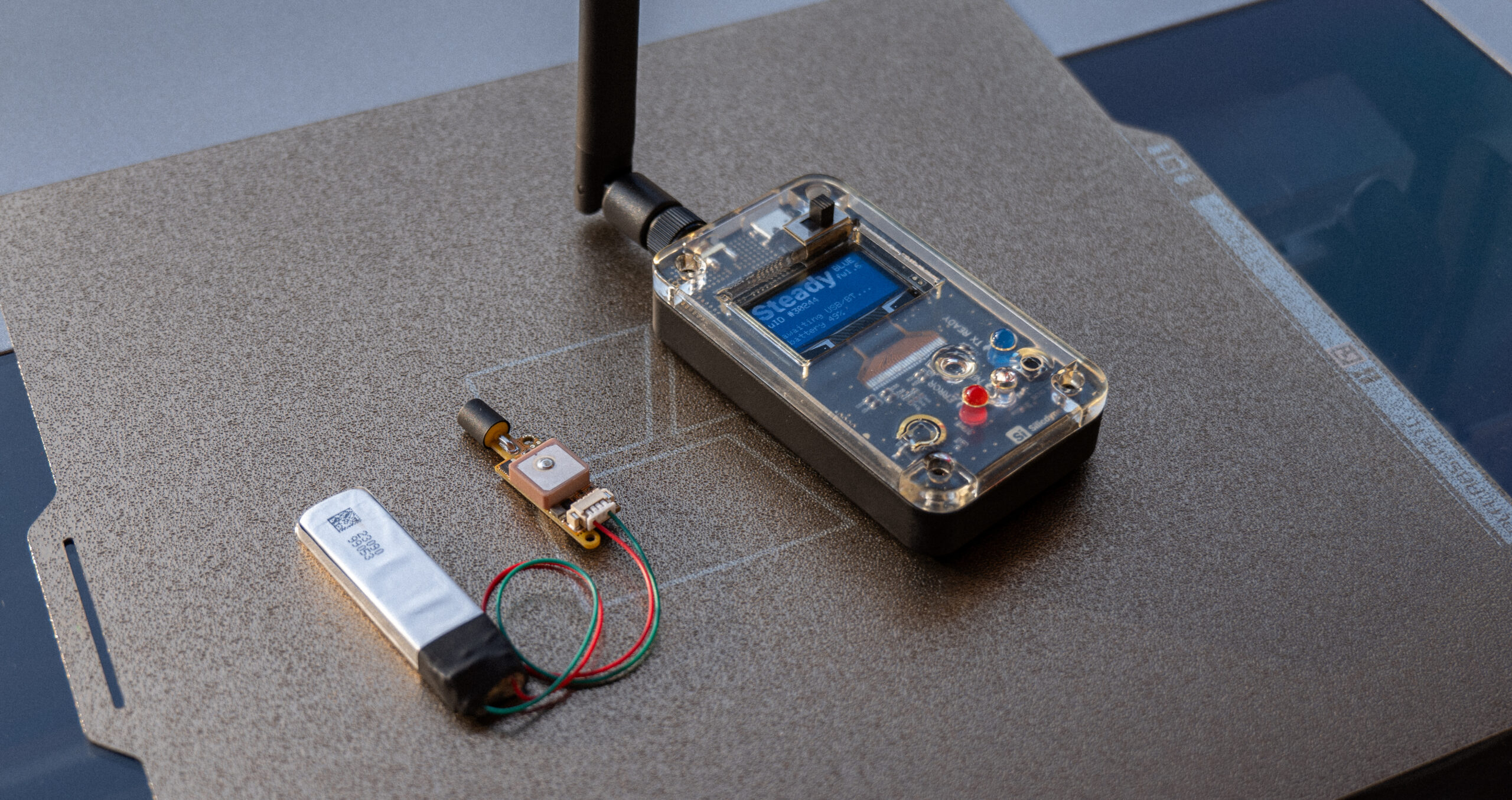

SteadyBlue ground station
Detailed Features
Reperix
Long-range radio communication
with a ground station and a mobile application,
for tracking, telemetry and remote configuration.
High-rate BlackBox
logging your rocket’s precise 3D trajectory.
Ultra compact and convenient format
- Measuring down to 28 by 12mm for 4 grams
It really is the world’s smallest GPS rocket tracker ! - M2 breakable mounting tabs
- Overall status LED indicator
- Wide input voltage ranging from 3.4 to 16 volts
High end UBlox™ GNSS
calculating the position and altitude of your rocket anywhere on Earth using multiple satellite constellations.
Up to 80km altitude and 550m/s speed.
Time-To-First-Fix under 1 minute.
Rocket state detection
used for flight reviewing tools.
Auto channel switching
on frequency occupancy.
TheThingsNetwork®
supported to track Reperix at high altitudes almost anywhere in the world.

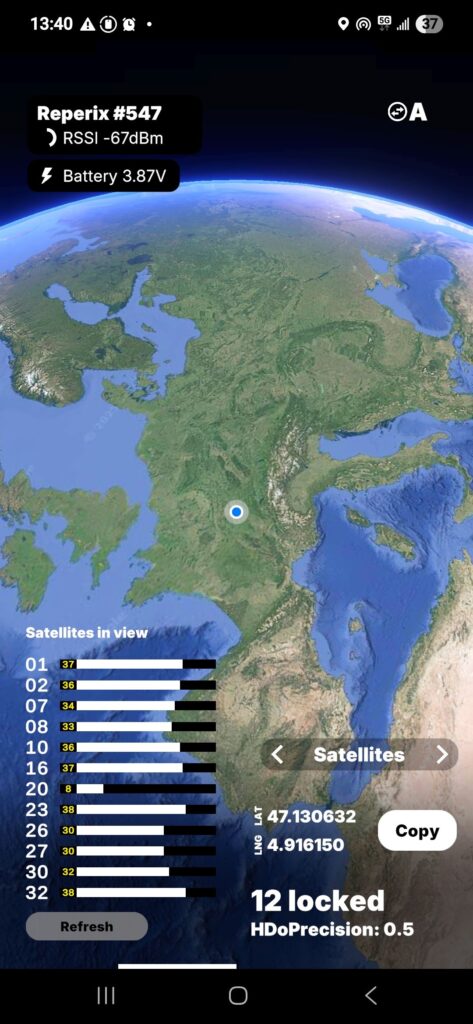

ReperixTracking mobile app

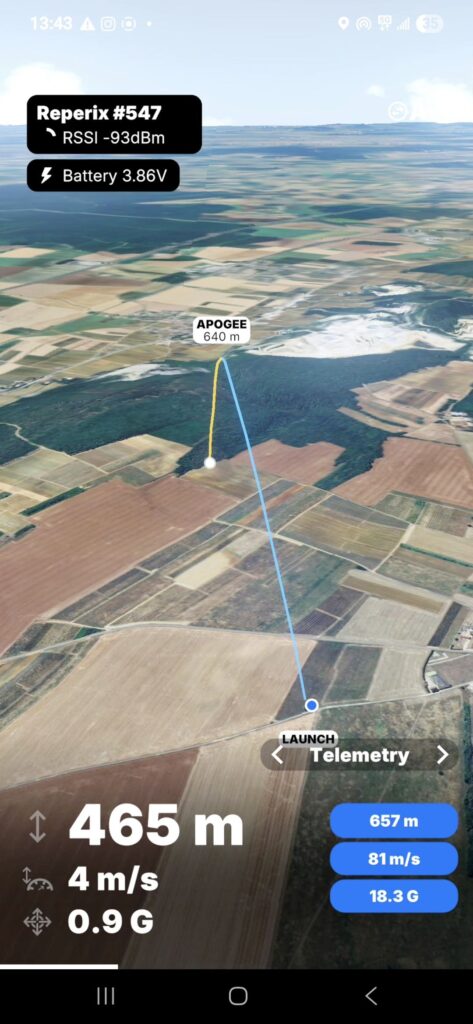

Realtime telemetry
allows you to easily monitor altitude, speed, distance & bearing, GNSS stats and much more.
Voice synthesizer
will continuously speak telemetry data so you can look at your rocket instead of the screen.
In-App Map
to easily guide you to your rocket using your smartphone location.
Easy setup
of your SteadyBlue ground station and Reperix’s parameters, all remotely.
ReperixTools website
Easy BlackBox download
containing all the data, after your flight, via the usb connector.
Flight summary
automatically generated from the log file, showing you the key flight data.
Data plotting
of all the values Reperix has recorded in its black box.
3D trajectography
using GNSS data to visualize your rocket’s flight on a globe map.
Data export
to .csv and .kml files, for more detailed analysis.
Firmware updates
to always fly with the latest best features.
![](https://silicdyne.net/wp-content/uploads/2024/08/Screenshot_20240808_232111-485x1024.jpg)
![](https://silicdyne.net/wp-content/uploads/2024/08/Screenshot_20240808_232059-485x1024.jpg)
Looking for software or other resources ?
Take a look at the download center
